Products > Body Worn Camera > > DS20 Body Worn Camera

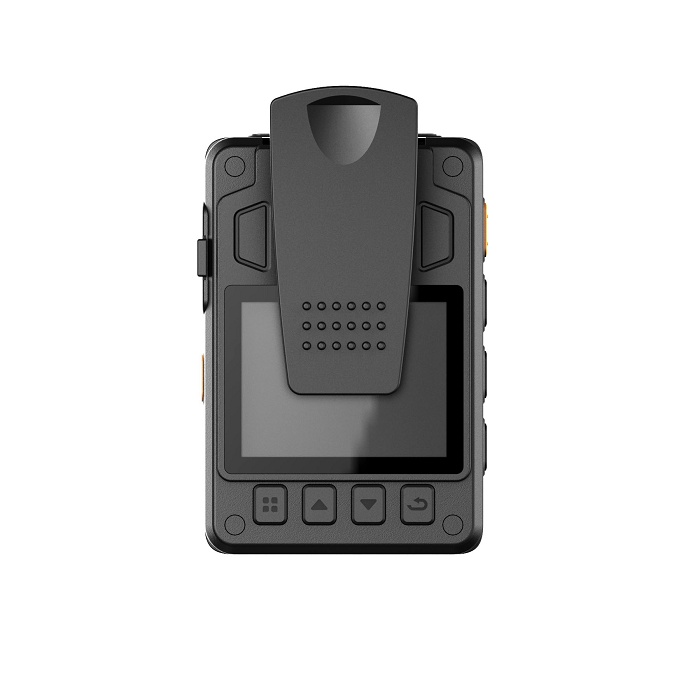

Product name : DS20 Body Worn Camera
Product No. : 202222495930
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:

The website contains information about the technical characteristics of the basic model of the Personal chest video recorder

model DS20



Main characteristics of chest video recorder DS20

Matrix

OS05A20 5MP

Matrix resolution

5 MP

Processor

Ambarella H22

User interface

Graphic

Viewing angle

Horizontally 140 ° diagonally 170 °

Screen

2.0" LCD 960*240 Pixel , color

Maximum resolution

848*480 30fps, 1280*720 30fps, 1280*720 60fps, 1920*1080 30fps, 1920*1080 60fps, 2560*1440 60fps ( chipset supports 4K)

The main stream

432*240 30fps,848*480 30fps,1280*720 30fps

Video format

MOV/AVI/MPEG4/4k

Audio format

AAC2/MP3/ WAV

Video compression

H.264/H.265

Photo resolution

Adjustable, maximum 50 MP

Photo format

JPEG

Support for burst shooting

1/3/5/10/15/20/30/

Ability to fast forward the video

2X, 4X, 8X, 16X, 32X, 64X

Recording LED indicator

Red

Satellite positioning

Built-in GPS module

Bluetooth

Built-in Bluetooth module

Wireless data transmission systems

Built-in Wi-Fi , 802.11b/g/n, 2.4G&5G, AP/STA/P2P, Wi-Fi

Protocols

TCP/IP, RTSP, RTMP, GB/28181/JSON

Ports

HDMI/USB

The presence of a digital shutter

In stock

Day/night mode

IR filter, up to 10 meters, with automatic and manual switching mode

The possibility of maximum vision at night

Human object from 0 to 10 meters

Automatic white balance

In stock

The presence of a flashlight function

In stock

The presence of a built-in microphone

in stock, the possibility of working in walkie-talkie mode

Support for the function of a laser pointer

In stock

The amount of built-in memory

128 GB , expandable to 256 GB

Availability of buttons (including but not limited to)

Power button, start recording,

tag button, audio record button, SOS button

Impact resistance

1.8 meters

Moisture resistance

IP 67

Availability of the interface

USB 2.0/HDMI

The possibility of charging via USB / charging station / power bank

In stock

Availability of battery capacity

4000 mAh

Battery activity time in standby mode

100 hours

Video recording time

At least 16 hours with 1080p video quality,

At least 20 hours with 480p video quality.

Using GPS and WiFi at 480p video quality at least 12 hours

Permissible temperature range during operation

From -40 ° C to + 60 ° C

Working humidity

≤ 90%; IR 68

Weight of video recorder without attached clamp, grams

155

Weight of video recorder with attached clamp , grams

175

Height, mm

84

width, mm

56

thickness, mm

27

Motion sensor

In stock

SOS alarm

In stock

Text message

In stock

Vibrator

In stock

Recording activation alarm

Sound and tactile vibration

Group feedback (PTT)

In stock

User and device ID

In stock

Fastening

Metal clamp with 360 degree rotation

Support for an external video camera

In stock

The menu language is Ukrainian, English and others set by the manufacturer

The language of the menu is Ukrainian, English, French, German, Russian, etc., set by software

Complete set

USB cable - 1, USB charger -1, Docking station -1, User manual -1, Passport -1, disk with drivers











We also have the opportunity to supply such a model in such a configuration



Battery capacity

2300 mAh , 2800 mAh , 3200 mAh

Built-in memory capacity

32GB/64GB/128GB/256GB

Additional storage capacity (memory card - microSDHC , microSDXC )

32GB/64GB/128GB/256GB

Audio interfaces

input/ output Mini-jack (3.5 mm)

Charging cable

Magnetic contact charging/USB-C

The presence of an LED

Red, blue, green, yellow, etc

Flashlight mode

the presence of a white LED

ZUM

x 1-64



Additional software

TS , TS technology will not lose the video file if the video file is interrupted by an accidental impact during recording

Smart cyclometer

Displays useful information about the movement. Connection to the GPS module is required

Additional equipment

Remote control (connects via Bluetooth ), car charger, HDMI/USB adapters to order. Media with drivers
